Canyon Ridge House — Drawing Set for Your Architect

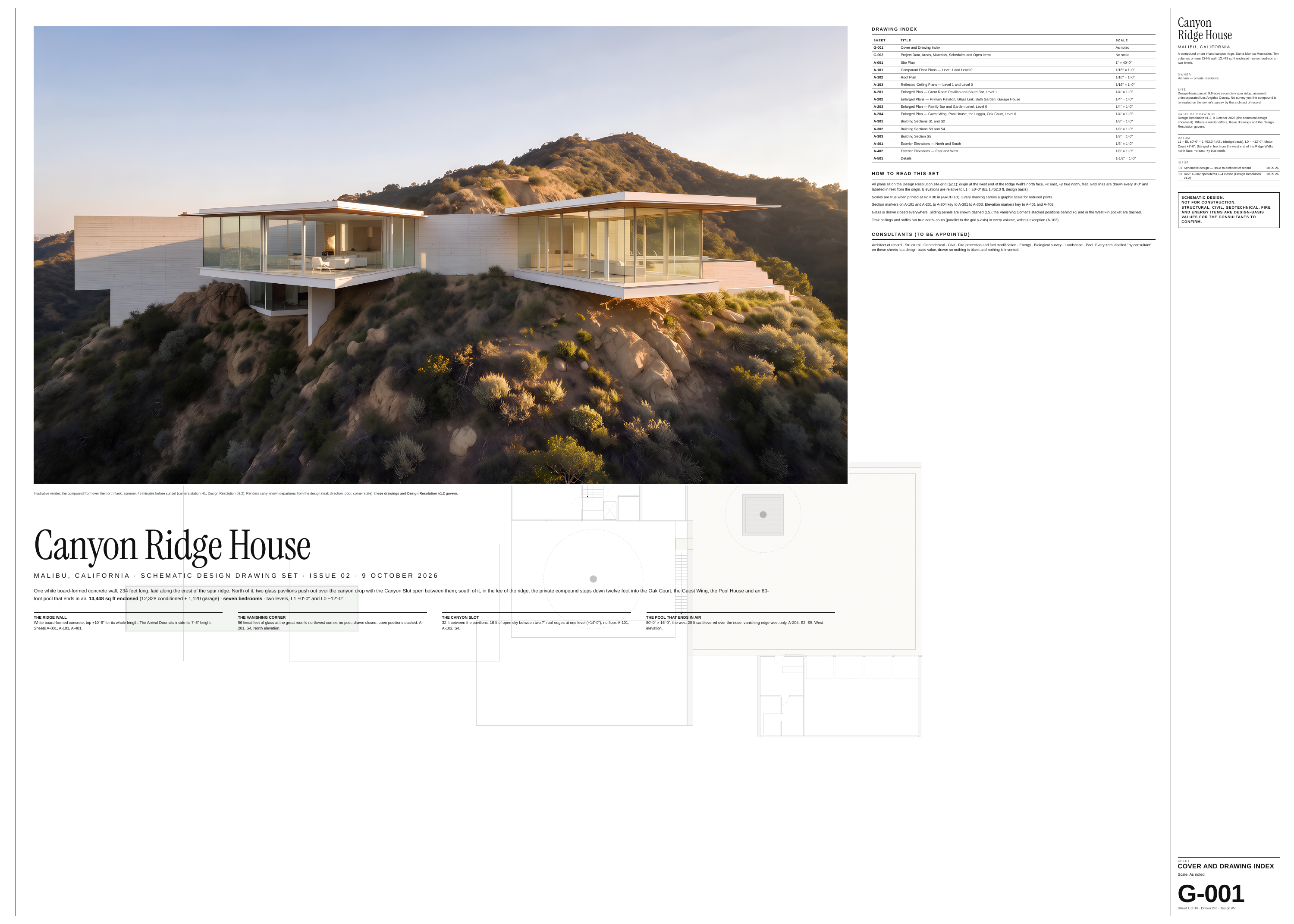

SHEET TITLE SCALE Canyon Ridge House G-001 Cover and Drawing Index As noted MALIBU, CALIFORNIA G-002 Project Data, Areas, Materials, Schedules and Open Items No scale A-001 Site Plan 1" = 40'-0" A compound on an inland canyon ridge, Santa Monica Mountains. Ten volumes on one 234-ft wall. 13,448 sq…

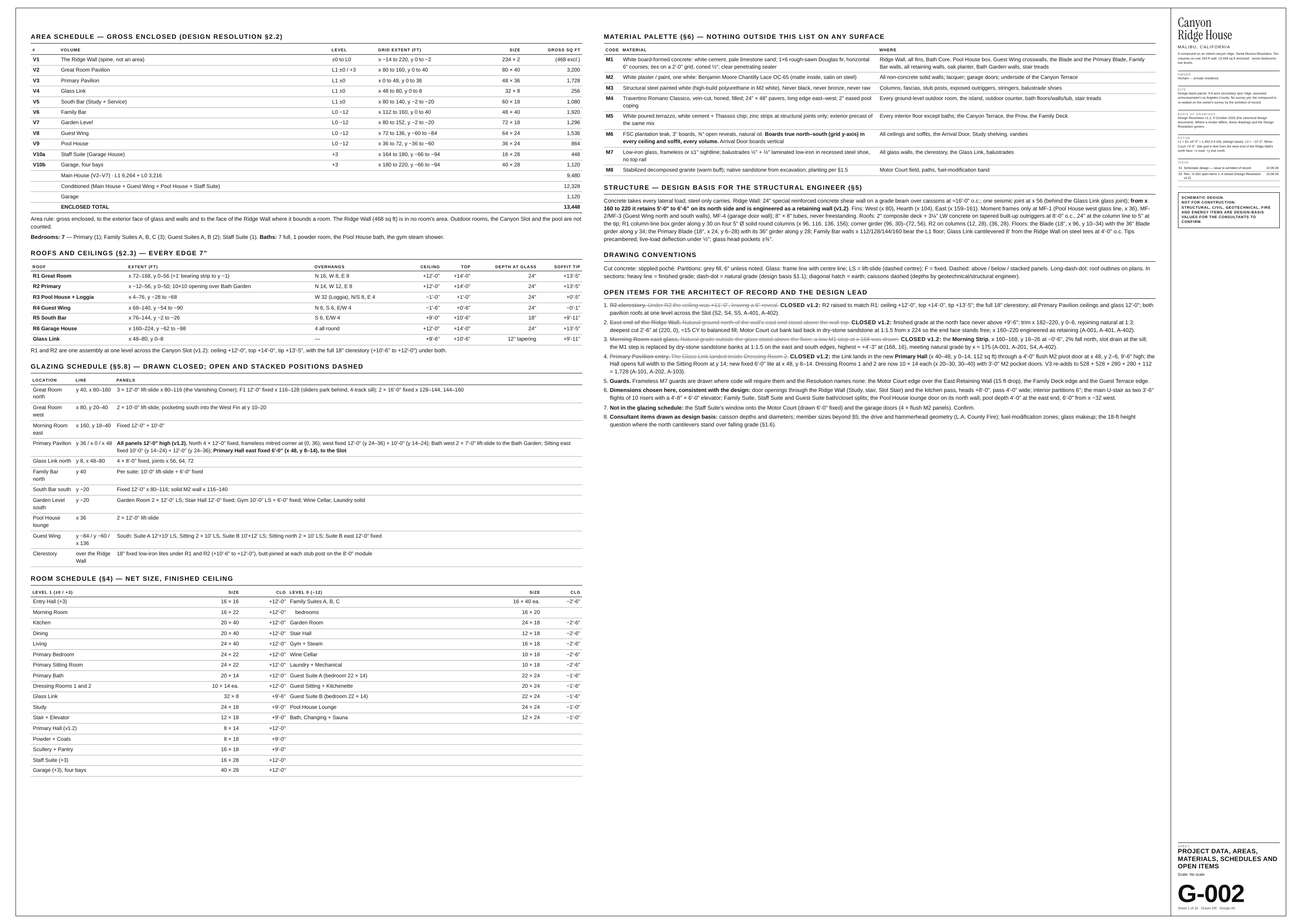

AREA SCHEDULE — GROSS ENCLOSED (DESIGN RESOLUTION §2.2) M AT E R I A L PA L E T T E ( § 6 ) — N O T H I N G O U T S I D E T H I S L I S T O N A N Y S U R FA C E # VOLUME LEVEL GRID EXTENT (FT) SIZE GROSS SQ FT V1 The Ridge Wall (spine, not an area) ±0 to L0 x −14 to 220, y 0 to −2 234 × 2 (468…

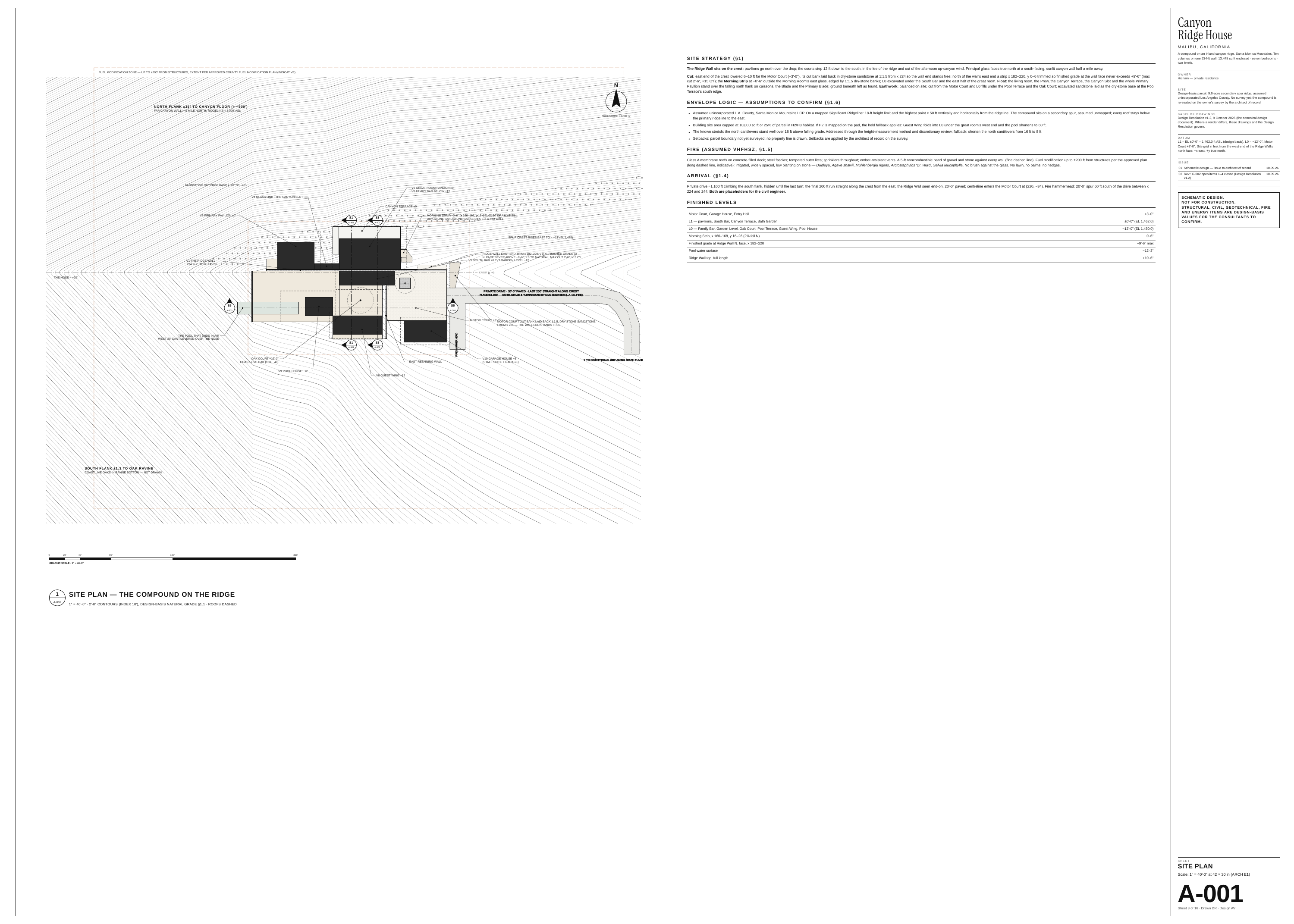

Canyon Ridge House MALIBU, CALIFORNIA A compound on an inland canyon ridge, Santa Monica Mountains. Ten volumes on one 234-ft wall. 13,448 sq ft enclosed · seven bedrooms · two levels. S I T E S T R AT E G Y ( § 1 ) The Ridge Wall sits on the crest; pavilions go north over the drop; the courts step…

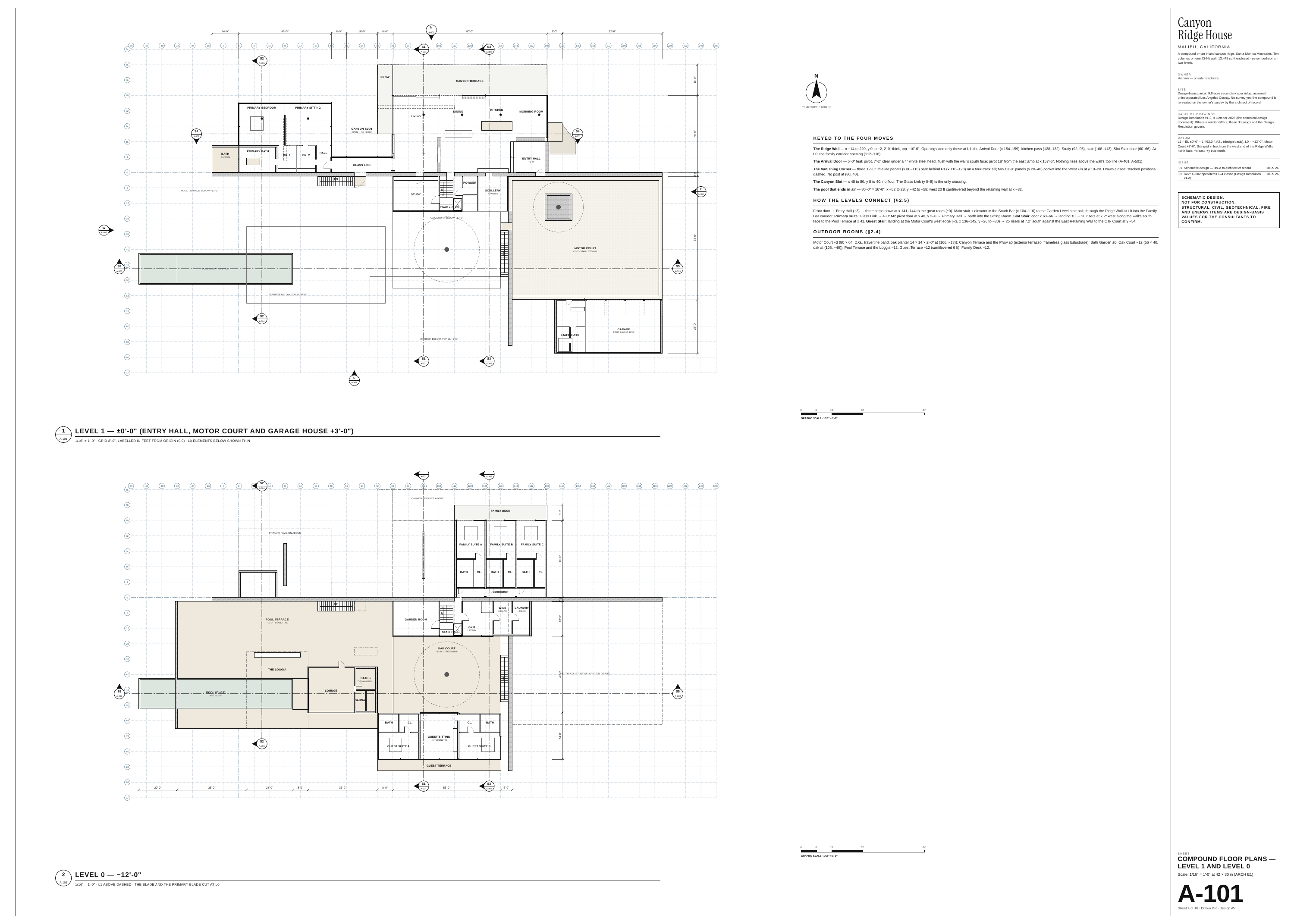

Canyon Ridge House N 14'-0" -56 -48 -40 -32 -24 -16 -8 48'-0" 0 8 16 24 8'-0" 32 40 48 16'-0" 56 64 8'-0" 72 80'-0" A-401 80 88 96 S1 64 104 112 8'-0" 120 128 A-301 136 S3 144 152 160 52'-0" 168 176 184 192 200 208 216 224 232 240 248 MALIBU, CALIFORNIA A-302 A compound on an inland canyon ridge,…
Canyon Ridge House MALIBU, CALIFORNIA A compound on an inland canyon ridge, Santa Monica Mountains. Ten volumes on one 234-ft wall. 13,448 sq ft enclosed · seven bedrooms · two levels. OWNER Hicham — private residence SITE -48 -32 -16 0 16 68'-0" 32 48 16'-0" 64 80 96 96'-0" 112 128 144 160 176 192…

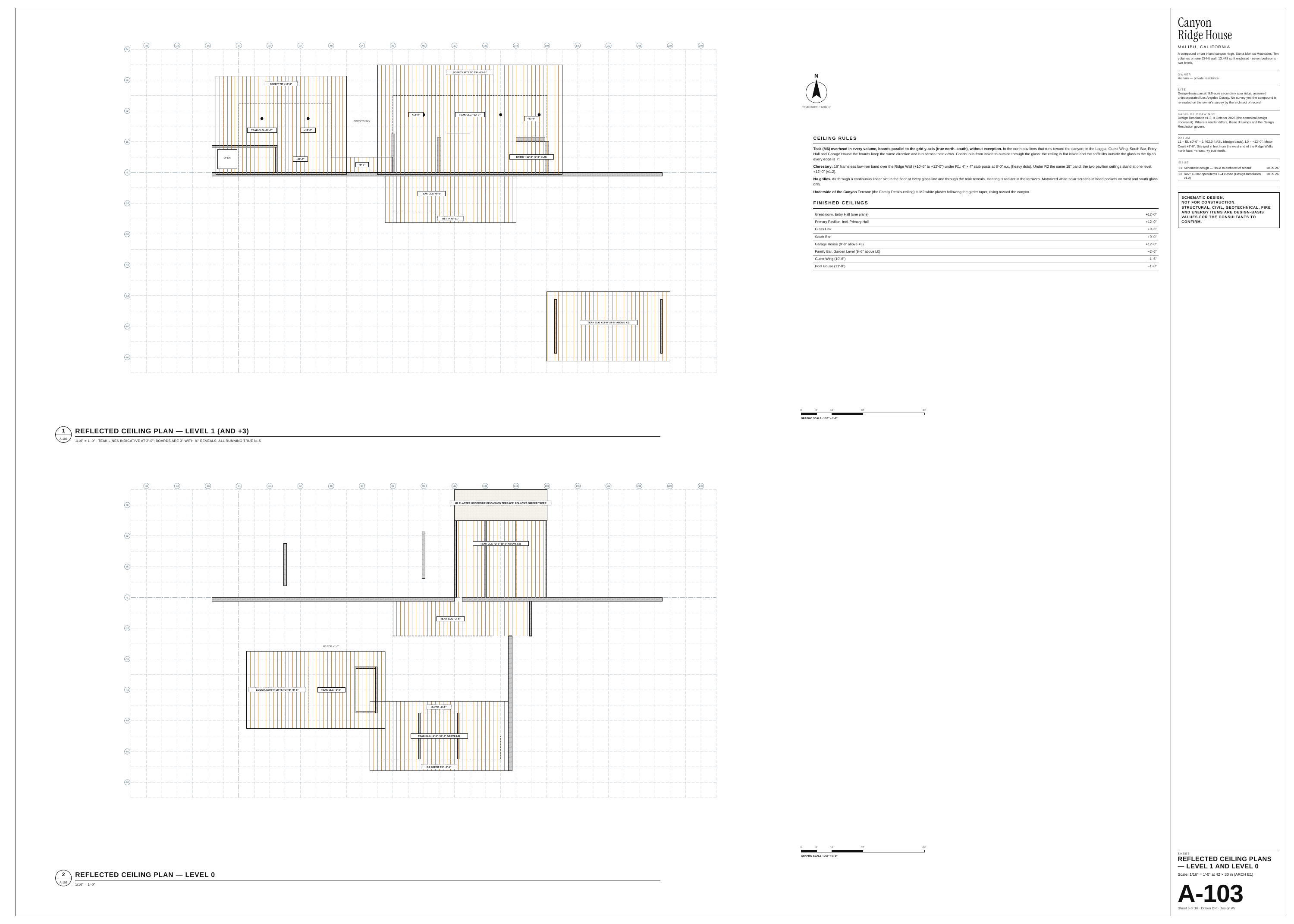

Canyon Ridge House -48 -32 -16 0 16 32 48 64 80 96 112 128 144 160 176 192 208 224 240 MALIBU, CALIFORNIA 64 A compound on an inland canyon ridge, Santa Monica Mountains. Ten volumes on one 234-ft wall. 13,448 sq ft enclosed · seven bedrooms · two levels. SOFFIT LIFTS TO TIP +13'-5" N 48 OWNER…

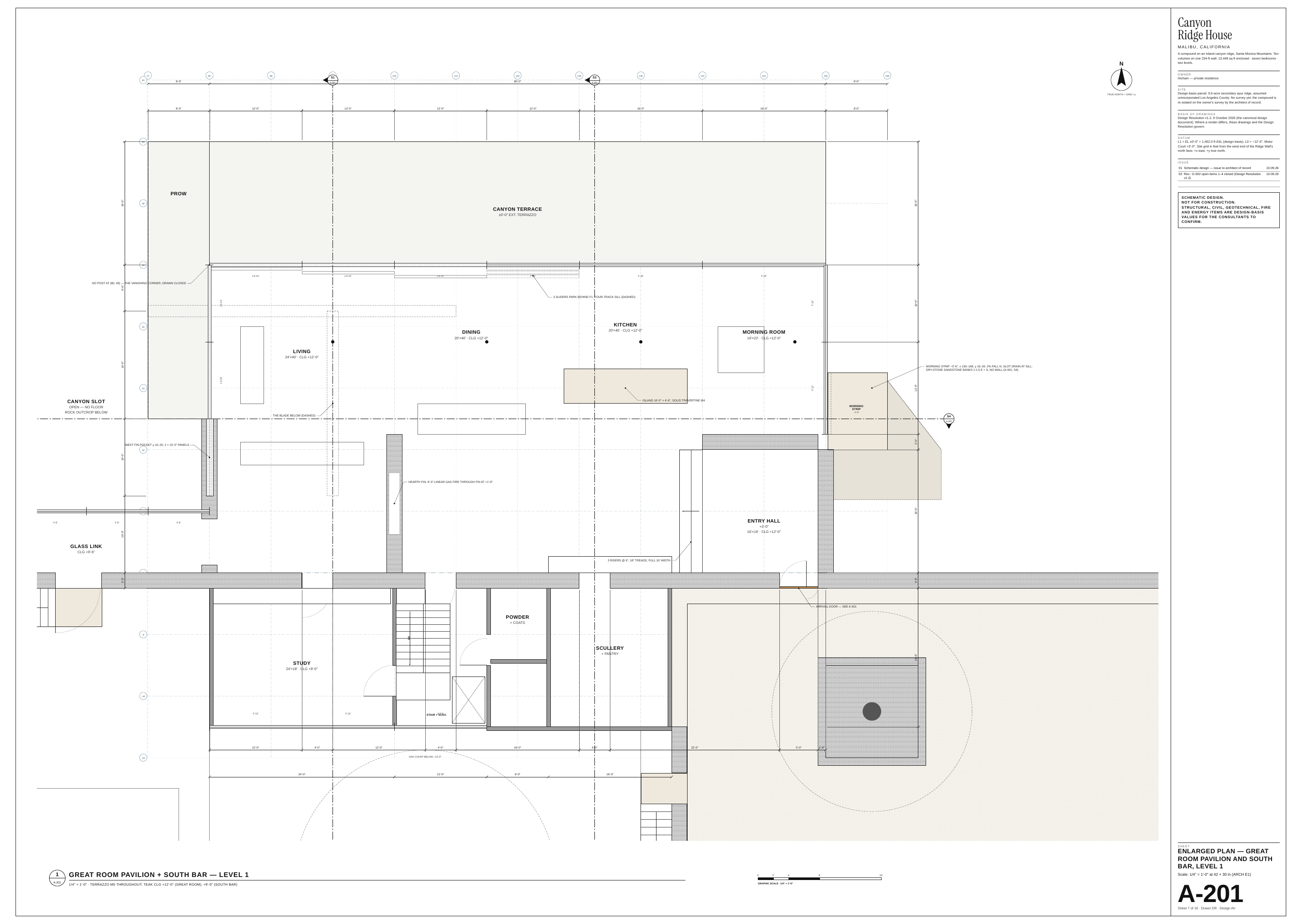

Canyon Ridge House MALIBU, CALIFORNIA N 72 64 80 88 96 104 S1 8'-0" 112 120 128 80'-0" A-301 136 S3 144 152 160 OWNER 168 Hicham — private residence 8'-0" A-302 A compound on an inland canyon ridge, Santa Monica Mountains. Ten volumes on one 234-ft wall. 13,448 sq ft enclosed · seven bedrooms · two…

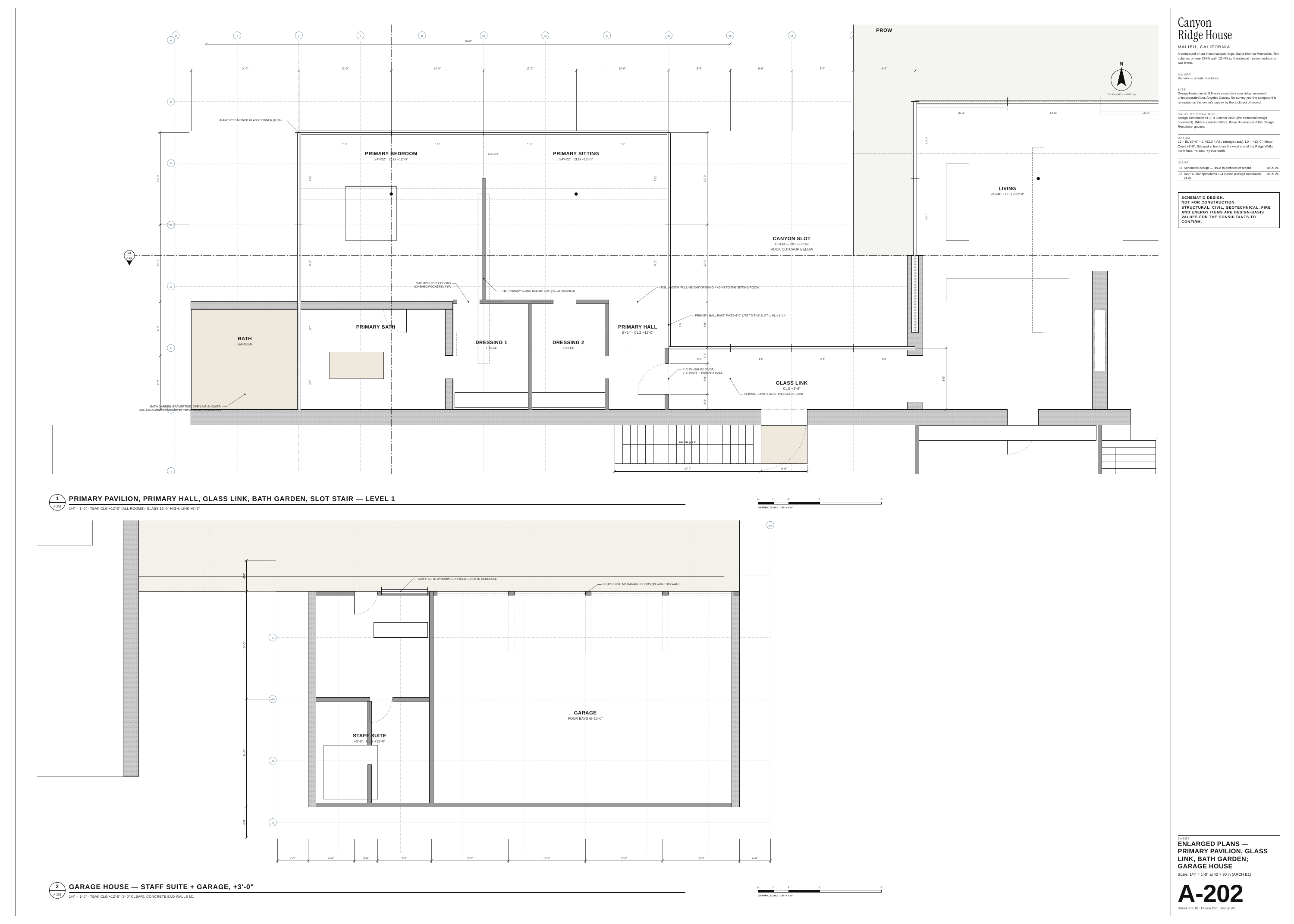

Canyon Ridge House PROW -16 -8 0 8 16 24 48 32 40 48 56 64 72 80 68'-0" MALIBU, CALIFORNIA A compound on an inland canyon ridge, Santa Monica Mountains. Ten volumes on one 234-ft wall. 13,448 sq ft enclosed · seven bedrooms · two levels. N 14'-0" 12'-0" 12'-0" 12'-0" 12'-0" 8'-0" 8'-0" 8'-0" 8'-0"…
S1 S3 A-301 A-302 Canyon Ridge House MALIBU, CALIFORNIA N A compound on an inland canyon ridge, Santa Monica Mountains. Ten volumes on one 234-ft wall. 13,448 sq ft enclosed · seven bedrooms · two levels. OWNER Hicham — private residence SITE TRUE NORTH = GRID +y 72 80 88 96 104 112 120 128 136 144…

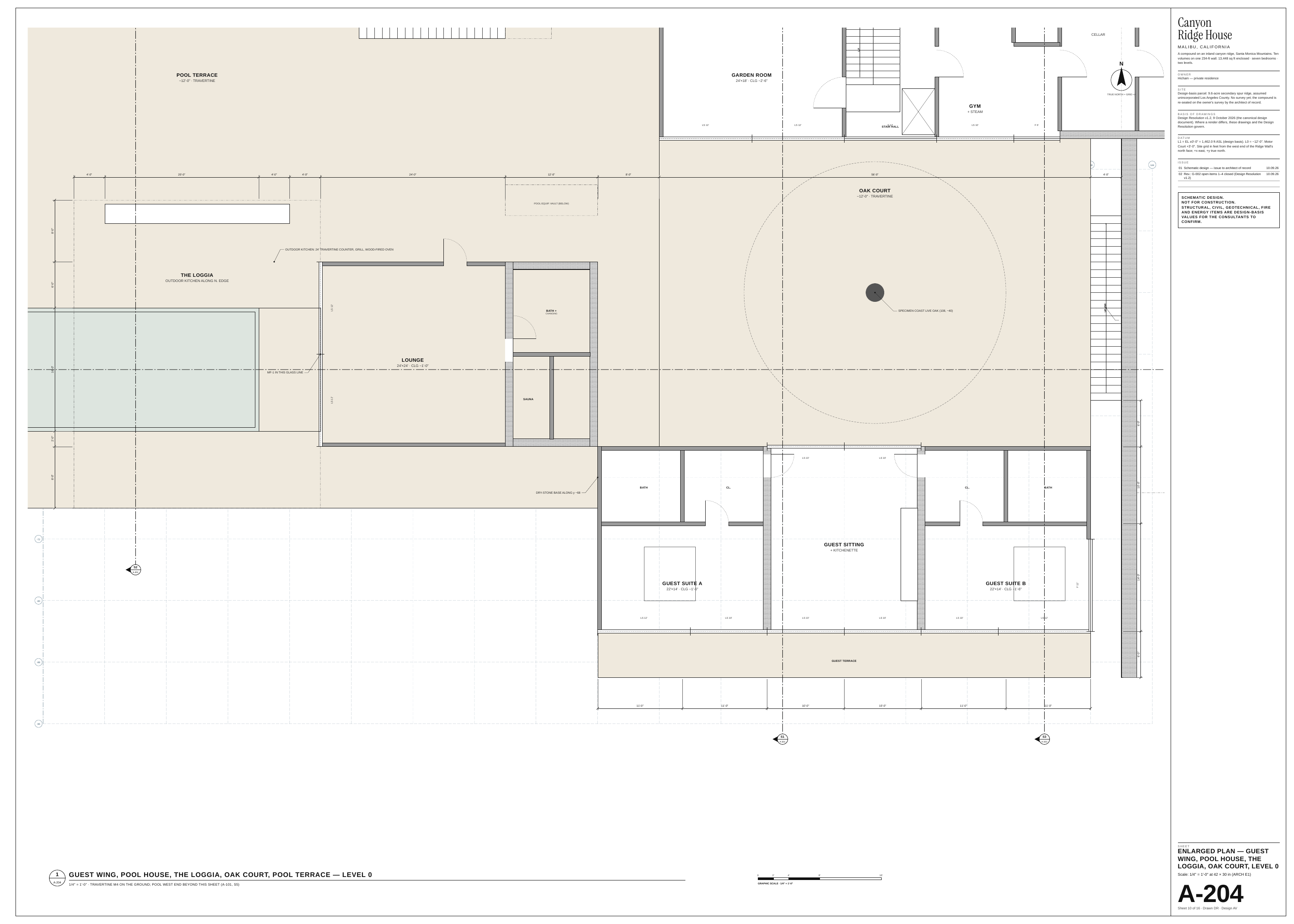

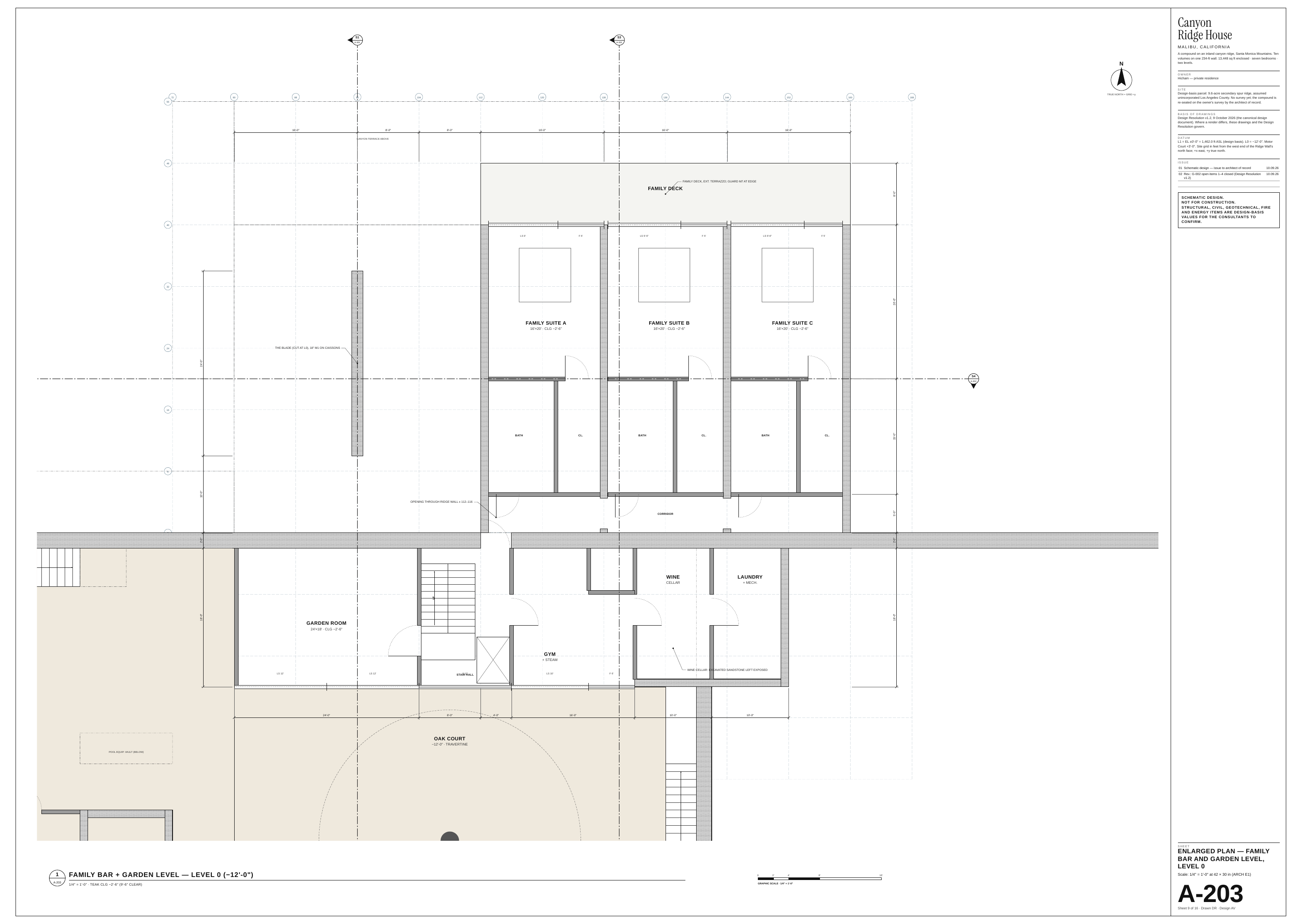

Canyon Ridge House CELLAR UP MALIBU, CALIFORNIA A compound on an inland canyon ridge, Santa Monica Mountains. Ten volumes on one 234-ft wall. 13,448 sq ft enclosed · seven bedrooms · two levels. N POOL TERRACE GARDEN ROOM −12'-0" · TRAVERTINE 24'×18' · CLG −2'-6" OWNER Hicham — private residence…

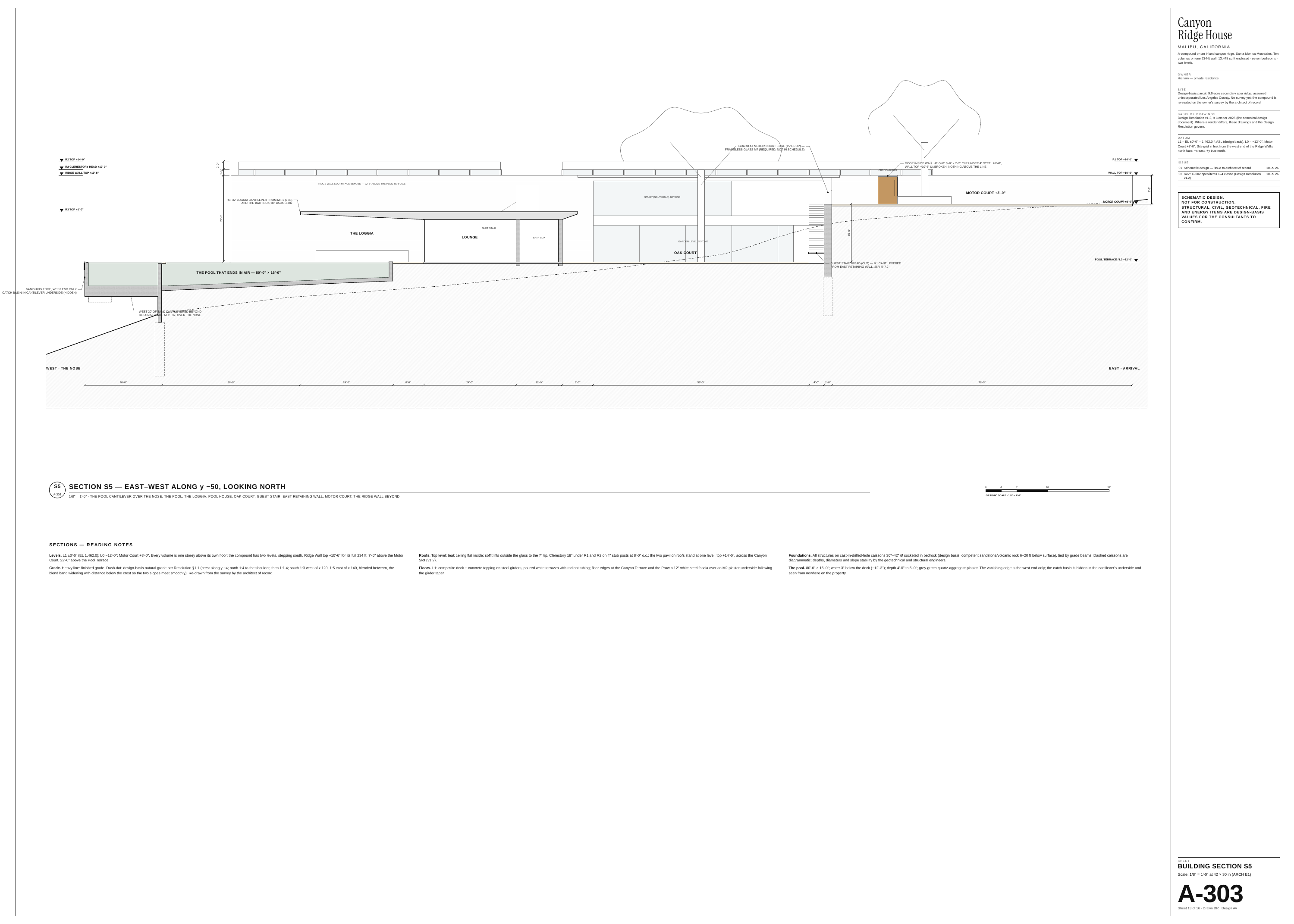

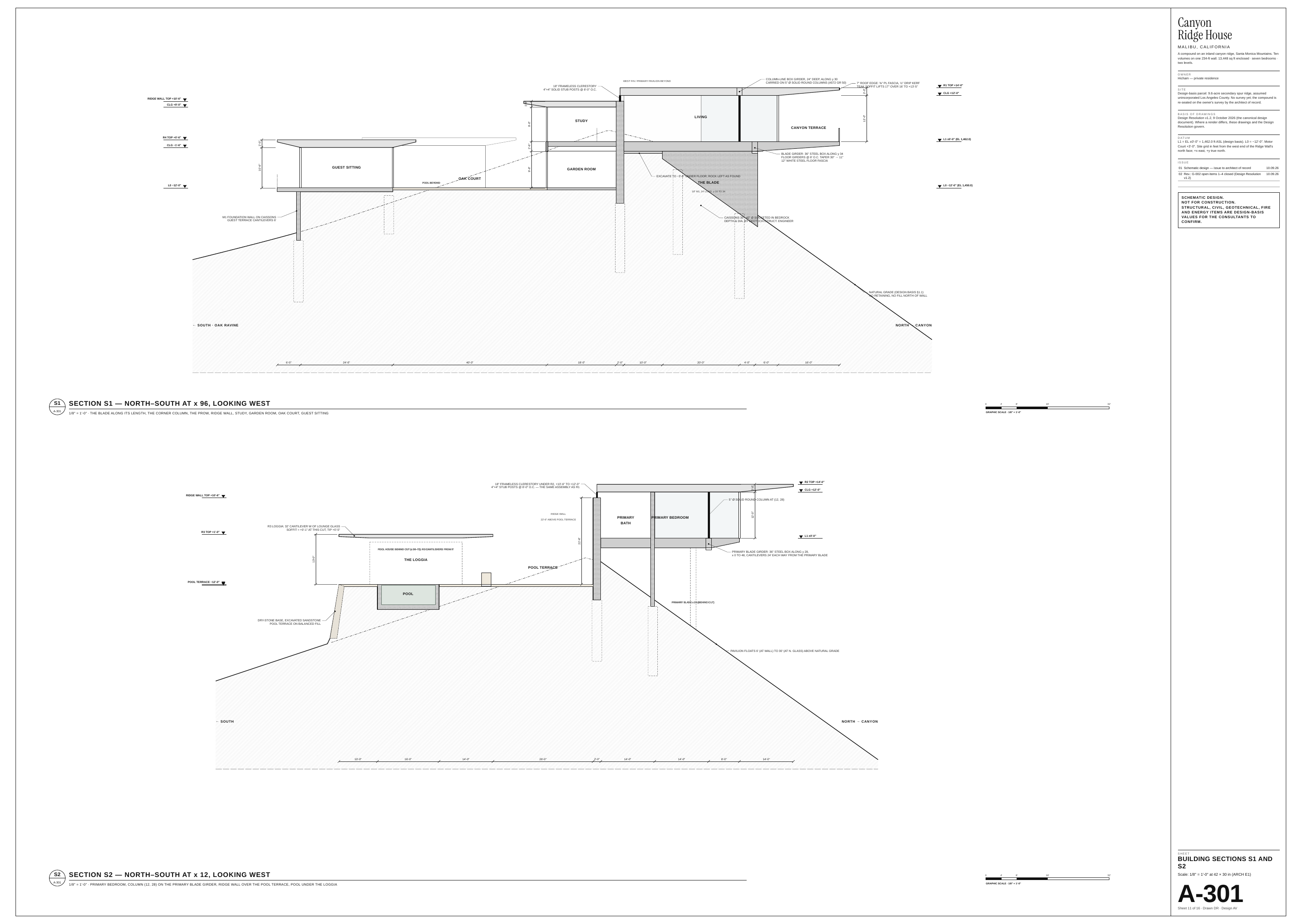

Canyon Ridge House MALIBU, CALIFORNIA A compound on an inland canyon ridge, Santa Monica Mountains. Ten volumes on one 234-ft wall. 13,448 sq ft enclosed · seven bedrooms · two levels. OWNER COLUMN-LINE BOX GIRDER, 24" DEEP, ALONG y 30 CARRIED ON 5" Ø SOLID ROUND COLUMNS (A572 GR 50) WEST FIN /…

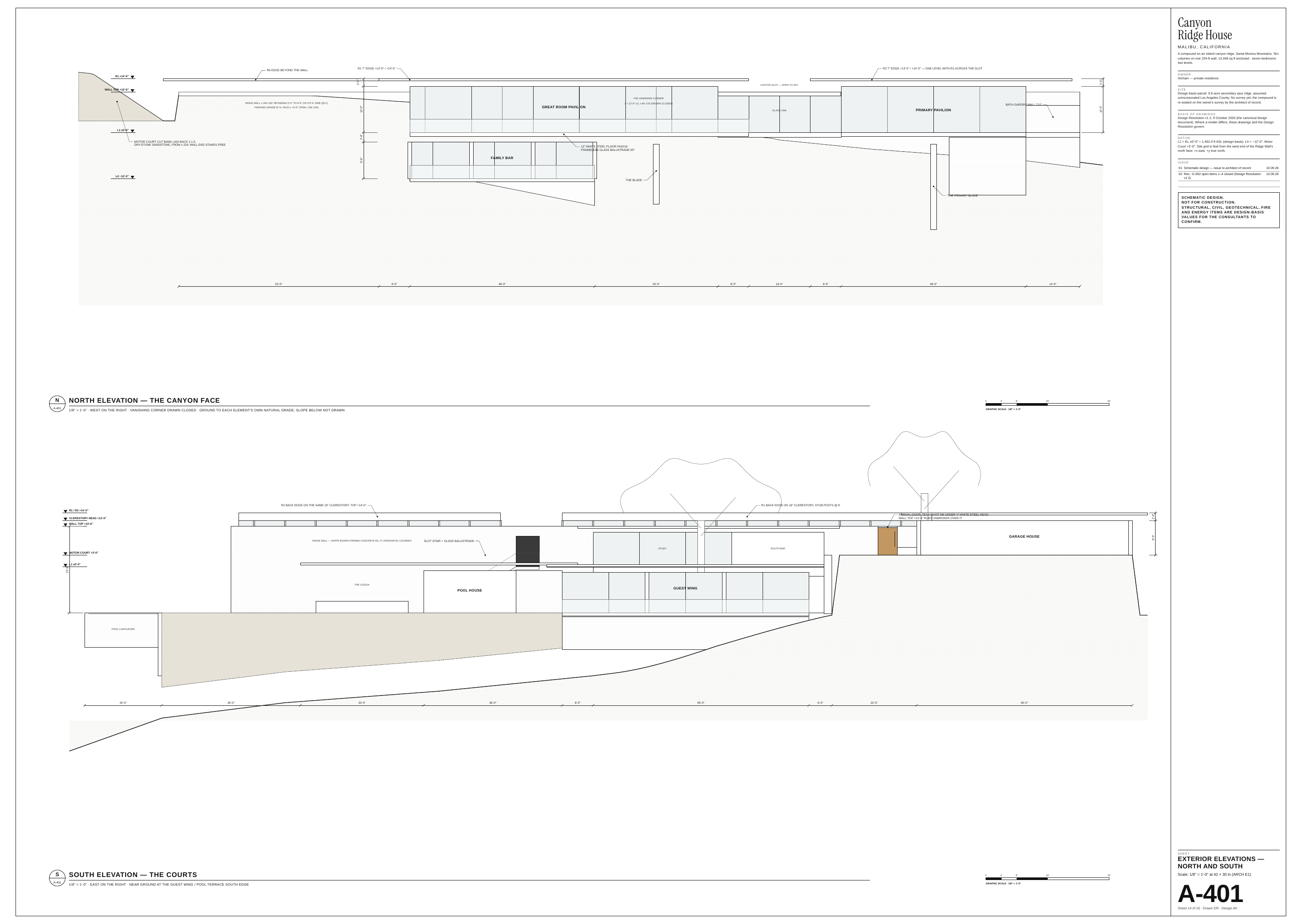

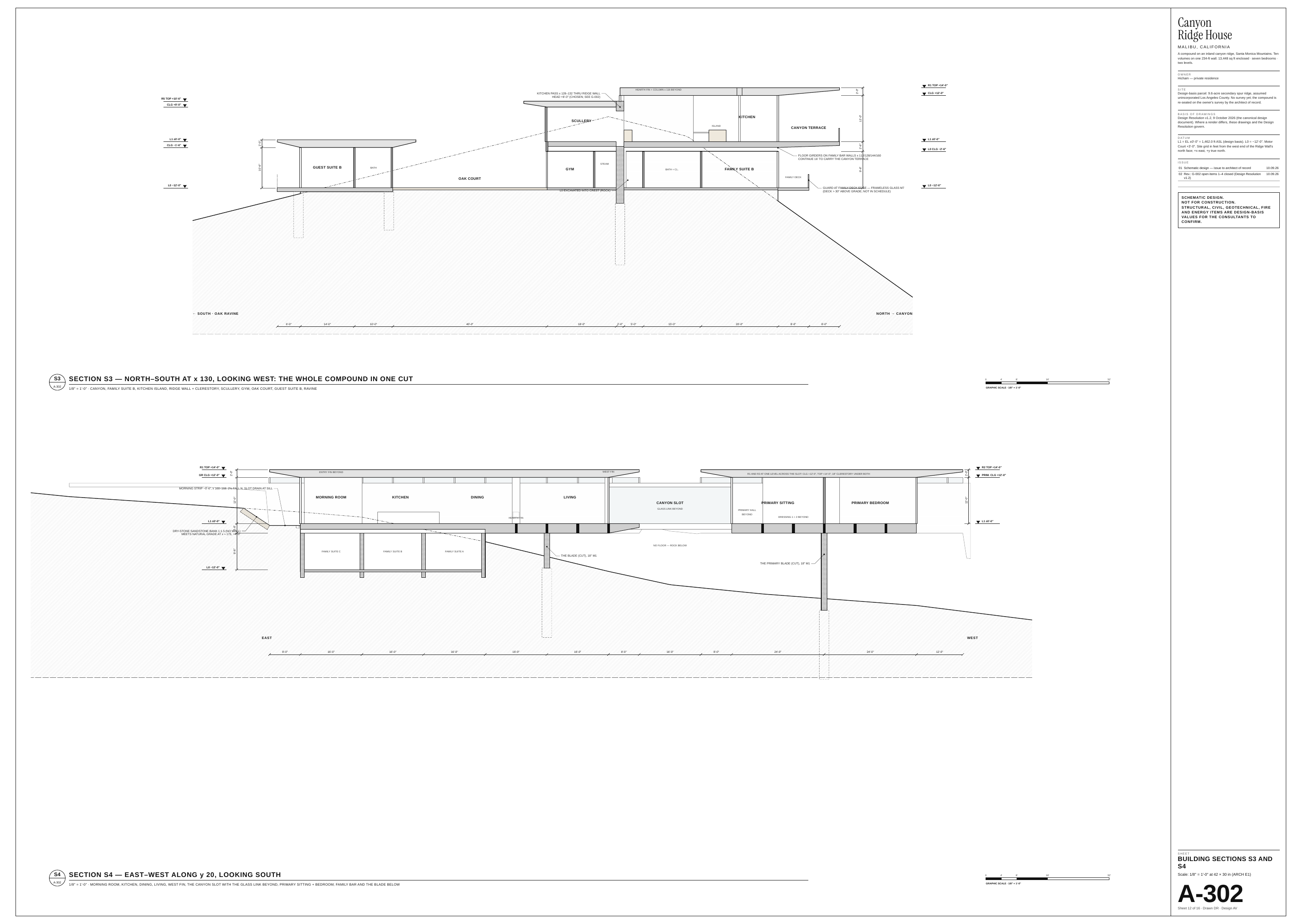

Canyon Ridge House MALIBU, CALIFORNIA A compound on an inland canyon ridge, Santa Monica Mountains. Ten volumes on one 234-ft wall. 13,448 sq ft enclosed · seven bedrooms · two levels. OWNER Hicham — private residence R1 TOP +14'-0" KITCHEN PASS x 128–132 THRU RIDGE WALL HEAD +8'-0" (CHOSEN; SEE…
Canyon Ridge House MALIBU, CALIFORNIA A compound on an inland canyon ridge, Santa Monica Mountains. Ten volumes on one 234-ft wall. 13,448 sq ft enclosed · seven bedrooms · two levels. OWNER Hicham — private residence SITE Design-basis parcel: 9.6-acre secondary spur ridge, assumed unincorporated…

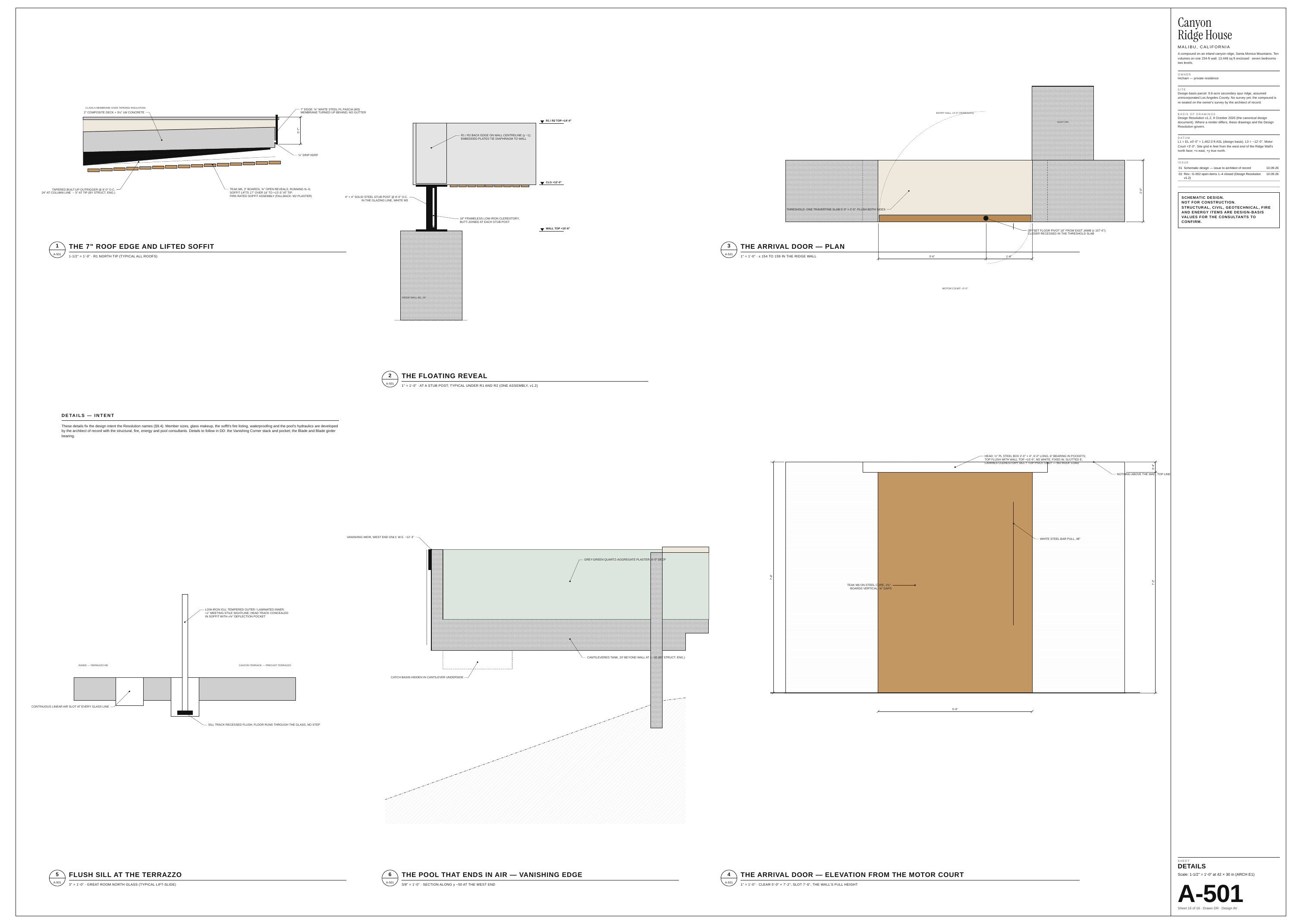

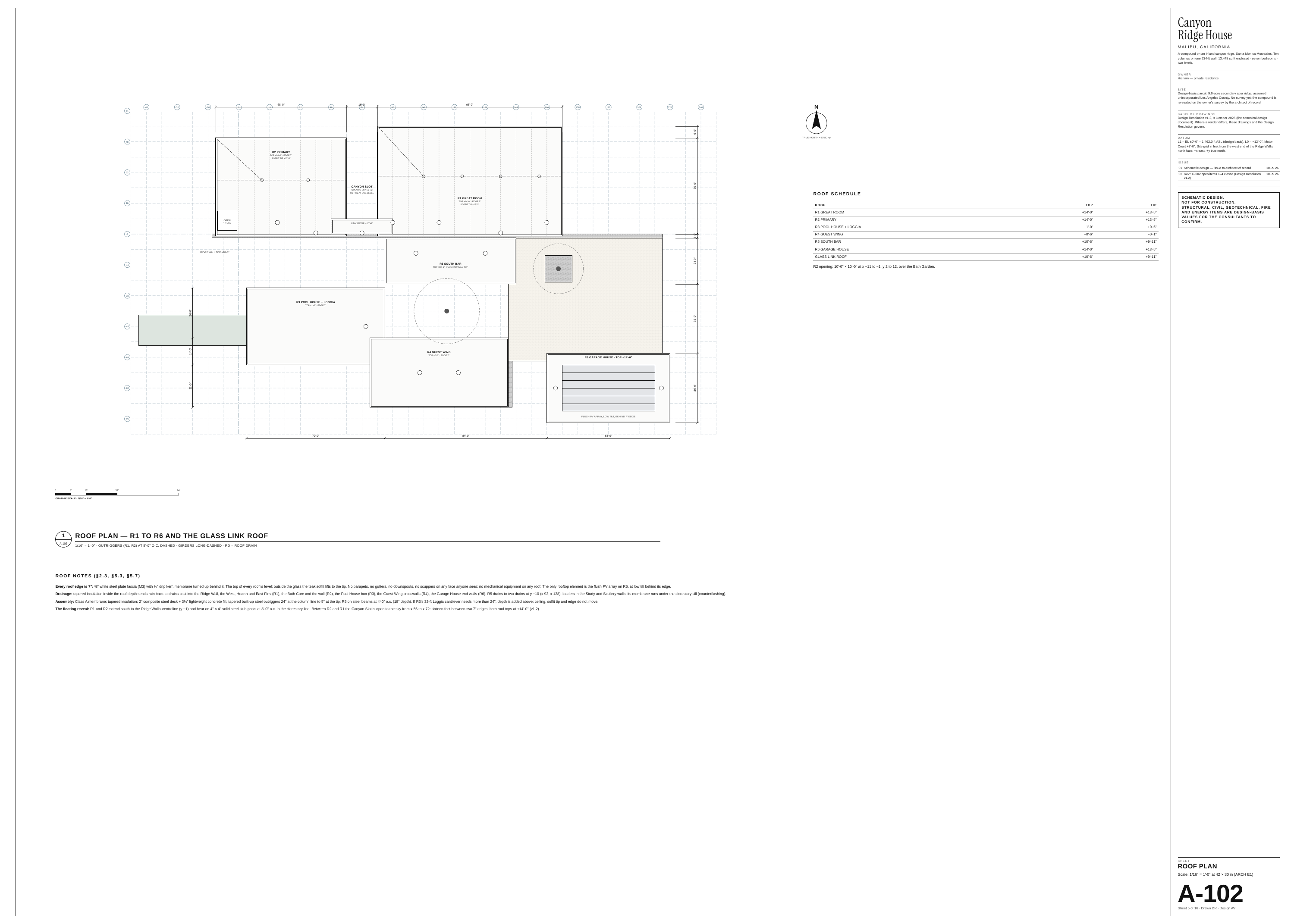

Canyon Ridge House MALIBU, CALIFORNIA A compound on an inland canyon ridge, Santa Monica Mountains. Ten volumes on one 234-ft wall. 13,448 sq ft enclosed · seven bedrooms · two levels. R1 7" EDGE +13'-5" / +14'-0" R6 EDGE BEYOND THE WALL R2 7" EDGE +13'-5" / +14'-0" — ONE LEVEL WITH R1 ACROSS THE…

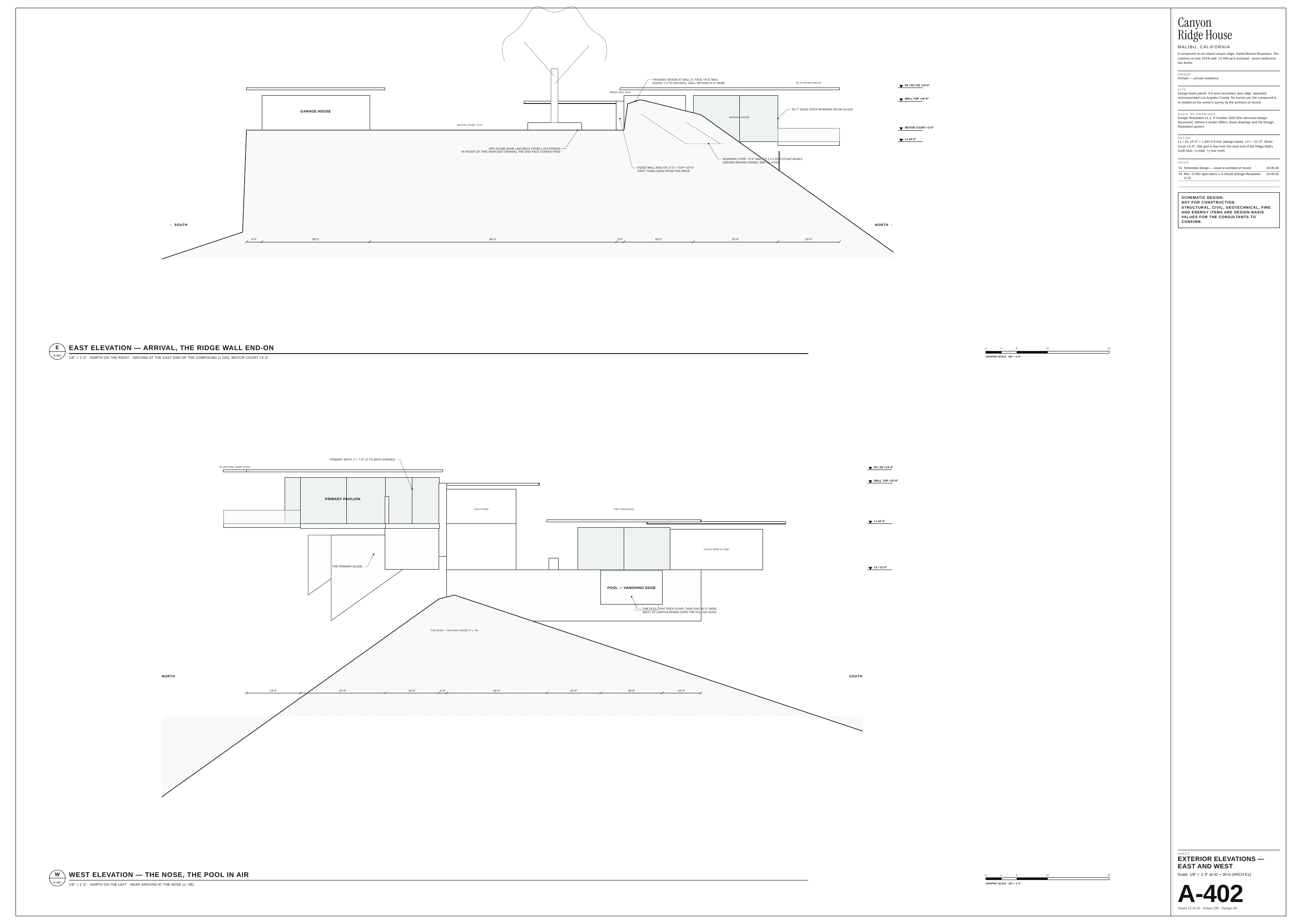

Canyon Ridge House MALIBU, CALIFORNIA A compound on an inland canyon ridge, Santa Monica Mountains. Ten volumes on one 234-ft wall. 13,448 sq ft enclosed · seven bedrooms · two levels. OWNER Hicham — private residence FINISHED GRADE AT WALL N. FACE +9'-6" MAX, RISING 1:3 TO NATURAL; WALL RETAINS…
Canyon Ridge House MALIBU, CALIFORNIA A compound on an inland canyon ridge, Santa Monica Mountains. Ten volumes on one 234-ft wall. 13,448 sq ft enclosed · seven bedrooms · two levels. OWNER Hicham — private residence SITE Design-basis parcel: 9.6-acre secondary spur ridge, assumed unincorporated…
